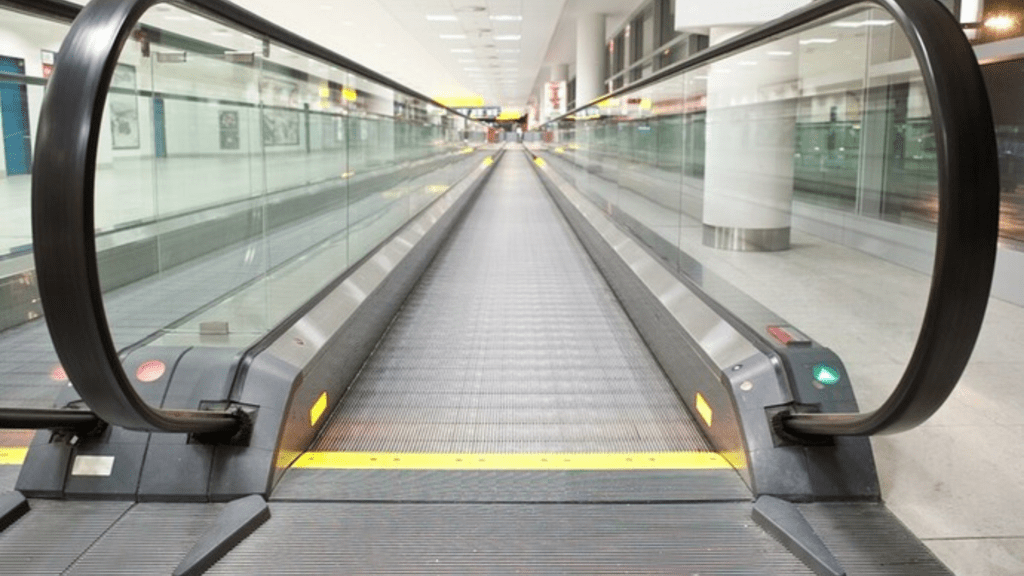

Moving Walkways in India | High-Performance Travelators
Our advanced and customizable moving walkways are engineered to enhance passenger mobility across airports, railway stations, metro hubs, and malls.
Designed for safety, comfort, and operational efficiency, VDMIL moving walkways ensure smooth transportation for high-traffic environments.
With extra-wide pallets, pitless installations, advanced safety systems, and energy-efficient operation, VDMIL delivers reliable commercial infrastructure solutions.
Did you find what you were looking for?
Commercial Moving Walkways for High-Traffic Areas
Connect With Nearest Sales RepresentativeChoosing the Right Elevator for Your Building: Hydraulic vs. Traction Lift Explained
Moving walk comparison
| Specification | Orinoco | iWalk |
|---|---|---|
| Max length / Rise (meters) | 200 / 9 | 100 |
| Max capacity (people per hour) | 8,200 | 7,300 |
| Inclination (degrees) | 0–6, 10, 12 | 0–6 |
| Configuration | Pit | Semi-pit, Pitless |
| Application | Commercial, Traffic | Commercial, Traffic |
| Step chain roller | Inside | Not applicable |
| Handrail drive location | Truss | Truss |
| Handrail shape | U-shape, V-shape | U-shape |
| Climate conditions | Indoor, Outdoor | Indoor, Outdoor |
| Nominal step width (mm) | 800, 1000, 1200, 1400, 1600 | 1100, 1400 |
| Speed (m/s) | 0.5, 0.65, 0.75 | 0.5, 0.65 |
| Upper/Lower part version | Short–Short, Long–Short, Long–Long | Not applicable |
| Balustrade options | Slim, Robust, Metal, Sandwich | Slim, Slim with decking |
| Aesthetic lights | Balustrade, Skirt, Truss, Ambient cladding, Soffit cladding | Balustrade, Skirt |
| Traffic lights | Floor plate, Decking, Newel, Column | Floor plate, Front skirt, Column |
| Safety lights | Step gap, Comb plate | Step gap |
| Drive unit | Chain drive, Direct drive | Direct drive |
| Energy efficiency class | A+++ | A+++ |
Explore Our Lift Range
OUR TAILORED SOLUTIONS FOR
DIVERSE APPLICATIONS
Always One Step Ahead
With a strong track record in delivering innovative people transportation systems for both new and existing buildings, we consistently set industry benchmarks. Our expertise lies in designing, selecting, installing, modernizing, and maintaining customer-centric mobility solutions that enhance building performance. Backed by extensive experience, a diverse product portfolio, and advanced design tools, we continuously exceed customer expectations.
Moving Walks – Technical Specifications
General
- Type: Horizontal & Inclined Moving Walkways
- Applications: Airports, Metro Stations, Shopping Malls, Hospitals
- Operation: Continuous, smooth, low-noise
- Standards: International safety & quality norms
Performance
- Rated Speed: 0.5 m/s (standard), up to 0.75 m/s (optional)
- Inclination: 0° (horizontal) to 12° (inclined)
- Passenger Capacity: Designed for heavy-traffic flow
Dimensions
- Pallet Width: 800 mm / 1000 mm / 1400 mm
- Installation Length: Customizable
- Maximum Rise: Project specific
Pallet & Track System
- Material: High-strength aluminum alloy
- Surface: Anti-slip, wear-resistant
- Track: Precision-engineered, vibration-reduced
Drive & Power
- Drive System: Energy-efficient gear motor
- Power Supply: 380–415V, 50Hz
- Energy Saving: Intelligent auto start/stop (optional)
Safety Features
- Emergency stop buttons
- Skirt & comb plate safety devices
- Handrail entry protection
- Speed monitoring & anti-reverse system
Handrail System
- Type: Anti-static, wear-resistant
- Colors: Black / Custom options
- Design: Hygienic, easy-clean surface
Balustrade & Finish
- Tempered glass balustrade
- Stainless steel cladding
- Optional LED lighting
Environment & Maintenance
- Operating Temp: –10°C to +40°C
- Humidity: Up to 95% (non-condensing)
- Maintenance: Low-maintenance, easy access design
